Complete LPG Cylinder Manufacturing Plant Solutions by Vansh Industries

In the highly specialized domain of LPG cylinder production, it's crucial to ensure that every stage of the process is both efficient and safe. Vansh Industries has emerged as a leader in providing turnkey solutions for LPG Cylinder Manufacturing Plants. With over a decade of experience, we specialize in the production of advanced machinery and provide consultation services for setting up full-scale manufacturing plants, guiding you from land selection to the final stages of production.

About Vansh Industries

Established in 2014 and headquartered in Dehradun, Uttarakhand, Vansh Industries is a premier manufacturer of machinery for LPG cylinder production. Our product line includes LPG Cylinder Manufacturing Machinery, Hydraulic Presses, SPMs, and other specialized equipment. We are committed to delivering high-quality, customer-centric solutions, and our mission is to help businesses thrive by providing durable, efficient, and customized machinery.

With years of expertise, we not only supply advanced machinery but also offer comprehensive services that include consultancy on plant setup, regulatory approvals, and infrastructure design. Our vision is to support industrial growth by offering innovative, environment-friendly, and sustainable solutions.

LPG Cylinder Manufacturing Process

The manufacturing of LPG cylinders involves several essential steps, each requiring specialized machinery and expertise. Below is an outline of the entire production process, supported by Vansh Industries’ cutting-edge machines:

1. Hydraulic Deep Drawing Press

• The initial stage involves transforming metal sheets into cylindrical shapes using our Hydraulic Deep Drawing Press. This machine ensures precise shaping with uniform thickness and durability, offering a capacity range of 10 to 250 tons.

2. Welding Machines

• Once the cylinders are formed, they undergo welding to fuse different parts. We provide circumferential and longitudinal welding machines, known for their strength and reliability, which ensure that the cylinders meet safety standards.

3. Hydraulic Testing Machines

• To ensure the safety of LPG cylinders, they undergo high-pressure tests using Hydraulic Testing Machines. This step is crucial for ensuring the cylinders are leak-proof and can withstand the required pressure levels.

4. Embossing Machines

• Each cylinder needs to be marked with essential information such as serial numbers and branding. Our Embossing Machines allow for accurate marking, ensuring compliance with regulations and easy traceability.

5. Painting Booth

• After testing, the cylinders are sent to the Painting Booth where they are coated with a corrosion-resistant finish. This step ensures that the cylinders are long-lasting and resistant to environmental damage.

6. Valve Fitting and Packing Line

• The final stage involves fitting the valves and preparing the cylinders for shipment. Our automated valve fitting and packing lines ensure that the entire process is efficient and streamlined.

Full Plant Setup Support

At Vansh Industries, we don't just supply machines; we also offer comprehensive support for setting up LPG cylinder manufacturing plants:

• Land & Infrastructure Development: We guide you in selecting the most suitable land and planning the infrastructure for an efficient production flow.
• Water System Setup: Our experts help in designing and installing water systems essential for various stages of the manufacturing process.
• Regulatory Approvals: We assist with obtaining all necessary licenses and permissions required to operate an LPG cylinder plant.
• Consultation Services: From initial planning to full-scale production, we provide expert advice on machinery selection, workforce training, and process optimization.

Why Choose Vansh Industries?

1. Turnkey Solutions: We handle everything from machinery to plant setup, ensuring a hassle-free experience.
2. Customized Machinery: Our equipment is customizable based on your specific production needs.
3. High Efficiency & Durability: Our machines are designed for heavy-duty operations, ensuring minimal downtime.
4. Expert Consultancy: We offer continuous support throughout the lifecycle of your plant, from installation to operation.

Conclusion

Setting up an LPG cylinder manufacturing plant is a complex process that requires precision, quality machinery, and expert consultation. Vansh Industries offers everything you need under one roof – from advanced machinery to complete project execution support. Our goal is to help you establish a plant that operates smoothly and meets industry standards while optimizing costs and efficiency.

For more information, feel free to download our catalog or watch our machines in action on YouTube.

📂 Catalog Link:
👉 Click here

🎥 YouTube Demonstration:
👉 Watch here

📞 Contact Us:

• Phone: +91-9634240075
• Email: vanshindustries.com@gmail.com
• Website: www.vanshindustries.net

Vansh Industries – Your trusted partner in LPG cylinder manufacturing solutions!

#LPGCylinderPlant #TurnkeySolutions #ManufacturingExcellence #VanshIndustries #HydraulicTechnology #QualityMachinery #IndustrialAutomation

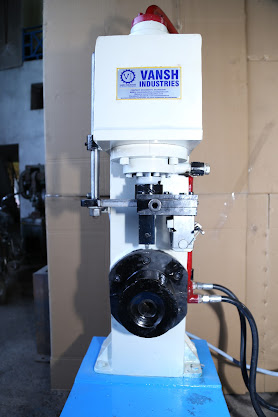

Hydraulic Stay Plate Embossing Machine: Working Process and Detailed Overview

The hydraulic stay plate embossing machine offered by Vansh Industries is designed to provide precision and efficiency in embossing, which is essential for various industrial applications like metal fabrication, automotive, and more. Below is a detailed breakdown of how the machine works, its operating process, and a step-by-step guide to its functionality.

How the Machine Works

The Hydraulic Stay Plate Embossing Machine functions primarily through hydraulic power, delivering consistent and precise embossing results. The hydraulic system ensures uniform pressure is applied across the stay plate, creating sharp, defined embossed markings. Here's how the process works:

1. Material Loading:

   • The operator places the metal stay plate into the machine’s work chamber. The stay plate is aligned correctly in the embossing die for accurate stamping.

2. Hydraulic Press Activation:

   • The machine’s hydraulic system is activated, providing high-pressure force to press the stay plate against the embossing die.
   • This hydraulic pressure can be adjusted based on the thickness and material of the stay plate, ensuring versatility in the operation.

3. Embossing Process:

   • As the hydraulic press applies force, the stay plate is embossed with the required design or serial number. This process ensures that each plate is uniformly marked without variations in depth or precision.

4. Ejection of the Finished Product:

   • Once the embossing process is complete, the machine automatically releases the pressure and ejects the stay plate from the die.
   • The finished product is a clean, precisely embossed stay plate, ready for use in industrial applications.

5. Quality Inspection:

   • After embossing, the operator can inspect the plate for quality control, ensuring the embossing meets the required specifications.

Detailed Embossing Process with Images

The process can be illustrated with the following steps:

1. Loading the Stay Plate

2. Hydraulic Press in Action

3. Embossed Stay Plate

Advantages of Hydraulic Stay Plate Embossing Machine

• Precision and Uniformity: The hydraulic system ensures that each embossing process results in a uniform finish, no matter the size or thickness of the stay plate.
• High-Speed Production: The machine allows for quick embossing, reducing production time and enhancing overall efficiency.
• Durability: Built for long-term industrial use, the machine is made from high-grade materials and designed to handle continuous heavy-duty operations.
• Low Maintenance: Minimal maintenance is required due to the robust design of the hydraulic system.

---

Applications

This machine is ideal for a wide range of industries:

• Automotive: Used for embossing stay plates in vehicles, which are important for structural stability.
• Metal Fabrication: Embossing metal plates for identification and labeling.
• General Manufacturing: Where metal stay plates are essential for component assembly.

Technical Specifications

• Press Type: Fully Hydraulic
• Pressure Capacity: Varies based on custom requirements (usually ranging from 10 to 250 tons)
• Operation Mode: Manual or semi-automatic, depending on the model
• Material Compatibility: Various metals including steel, aluminium, and more

---

Contact Us for More Information

At Vansh Industries, we are dedicated to providing high-quality, durable machines that meet your industrial needs. Reach out to our team for more information, a demo, or to discuss how this machine can benefit your operations.

📞 Phone: +91-9634240075
📧 Email: vanshindustries.com@gmail.com
🌐 Website: www.vanshindustries.net

Deep Drawing Hydraulic Press for Truck Air Tanks: The Complete Manufacturing Process

In the heavy-duty automotive industry, truck air tanks play a crucial role in managing the braking systems of trucks and other large commercial vehicles. To ensure durability, reliability, and precise manufacturing of these air tanks, Hydraulic Deep Drawing Presses are employed. Vansh Industries is a leader in providing state-of-the-art hydraulic presses designed specifically for the production of truck air tanks.

This blog will take you through the complete process of manufacturing truck air tanks using a deep drawing hydraulic press, from start to finish.

What is Deep Drawing?

Deep drawing is a metal forming process where a flat sheet of metal, known as a blank, is radially drawn into a forming die by the mechanical action of a punch. The end result is a seamless hollow shape. In the case of truck air tanks, deep drawing ensures that the tank is formed in a single, continuous process, maintaining structural integrity and strength.

Key Features of Vansh Industries' Hydraulic Deep Drawing Press

• High Pressing Force: With the capacity to apply immense pressure, these presses handle the formation of truck air tanks with ease, ensuring the material retains its strength after the deep drawing process.
• Advanced PLC Control: Automation through PLC (Programmable Logic Controllers) enhances precision, repeatability, and efficiency. Operators can control the process with minimal manual intervention.
• Customizable Designs: Our presses are adaptable, allowing for custom tank sizes and shapes based on specific truck model requirements.
• Energy Efficiency: The machine is optimized for low energy consumption while maintaining high productivity.
• Integrated Safety Systems: Safety is a priority. The press includes various safety mechanisms, such as overload protection, emergency stops, and operator shielding.

Materials Used for Truck Air Tanks

Truck air tanks are typically made from high-strength steel or aluminum, depending on the application. These materials need to withstand high pressures without cracking or deforming, making deep drawing the ideal method for shaping them.

Step-by-Step Process for Manufacturing Truck Air Tanks Using a Deep Drawing Hydraulic Press

1. Material Preparation

The process begins by preparing the raw material, typically a flat metal sheet (blank) made from steel or aluminum. The material is carefully selected based on the strength and durability requirements of the air tank.

• Sheet Thickness: The thickness of the blank is crucial and varies depending on the air tank specifications. Typically, thicker sheets are used for air tanks to ensure high-pressure resistance.

2. Blanking Process

The next step is cutting the flat sheet into the required size and shape. This is done using a blanking machine, which cuts out a circular or rectangular sheet based on the tank design. This blank will serve as the raw material for the deep drawing process.

3. Lubrication

Before the deep drawing process begins, lubrication is applied to the blank. This reduces friction between the die and the blank, ensuring a smooth drawing process and reducing wear on the tools.

4. Deep Drawing Process

In this critical step, the blank is placed into the hydraulic deep drawing press. Here's how the press works:

• Die and Punch Setup: The blank is positioned over the die, and a punch moves downward with immense pressure, forcing the blank into the die cavity. The hydraulic press applies uniform pressure, shaping the metal into a hollow form without any seams or joints.

• Single or Multiple Draws: For more complex shapes or deeper air tanks, the press may perform multiple drawing operations. This helps prevent tearing or wrinkling of the material, which can happen if the draw is too deep for a single operation.

• Blank Holding System: The blank holder ensures that the blank remains stable during the process, avoiding wrinkles and deformities. Vansh Industries’ presses come with sophisticated blank holding and cushioning systems to maintain consistency.

5. Trimming and Finishing

Once the drawing process is complete, excess material around the edges of the formed air tank is trimmed off. This is done using a trimming press, leaving a smooth and even surface.

6. Secondary Operations

After trimming, the air tank may undergo additional processes such as:

• Beading: This adds reinforcement to the edges of the tank for better pressure management.
• Piercing: Holes are punched into the tank for valves or fittings.
• Welding: Some designs may require additional welding for attaching parts or reinforcement.

7. Surface Treatment

To protect the air tank from corrosion and external elements, surface treatment such as powder coating or galvanization is applied. This not only enhances the durability of the air tank but also improves its aesthetic appeal.

8. Testing and Quality Control

Quality control is essential to ensure that the air tanks meet safety standards and can withstand the pressures they will face in real-world applications. Testing procedures include:

• Pressure Testing: The air tank is subjected to high pressure to ensure that there are no leaks or weak points.
• Dimensional Accuracy: Measurements are checked to ensure the tank meets the design specifications.
• Weld Integrity Testing: If welding is involved, the strength and integrity of the welds are tested.

Final Product: Ready for the Market

Once all the steps are complete and the air tanks pass rigorous testing, they are ready to be packaged and shipped to automotive manufacturers or distributors. These tanks will then be installed in trucks, contributing to safer and more efficient braking systems.

Why Choose Vansh Industries' Hydraulic Deep Drawing Press?

At Vansh Industries, we take pride in providing cutting-edge hydraulic presses that deliver precision, durability, and efficiency. Our machines are built to meet the demanding requirements of the automotive industry, ensuring that every truck air tank manufactured is of the highest quality.

Benefits of Choosing Our Hydraulic Deep Drawing Presses:

• High productivity with consistent results
• Customizable for different tank sizes and designs
• Low maintenance and energy-efficient operation
• Enhanced safety features for operator protection

Conclusion

The manufacturing of truck air tanks requires precision, strength, and efficiency, all of which are ensured by Vansh Industries’ Hydraulic Deep Drawing Presses. Our machines are engineered to provide flawless production, making them an essential asset for automotive and commercial vehicle companies.

If you are in the market for high-quality hydraulic deep drawing presses or need guidance in setting up your truck air tank manufacturing unit, contact Vansh Industries today!

---

Contact Us:
Phone: +91-9634240075
Email: info@vanshindustries.com
Website: www.vanshindustries.com



Boost Your Metal Forming Efficiency with Vansh Industries' Hydraulic Deep Drawing Press - Die Cushioning Type

At Vansh Industries, we pride ourselves on being at the forefront of industrial machinery manufacturing. Since our establishment in 2014 in Dehradun, Uttarakhand, we have been committed to delivering top-notch machinery solutions tailored to meet the evolving needs of our clients. Our range of products includes LPG Cylinder Manufacturing Machinery, Hydraulic Presses, and Special Purpose Machines (SPMs), all designed with precision, durability, and efficiency in mind.

Introducing the Hydraulic Deep Drawing Press - Die Cushioning Type

One of our flagship products, the Hydraulic Deep Drawing Press - Die Cushioning Type, is specifically engineered to tackle the most challenging metal forming tasks. Whether you are in the automotive, aerospace, or household appliance industry, this press is designed to deliver consistent, high-quality results, ensuring your production processes are efficient and reliable.

Key Features and Benefits

1. Enhanced Die Cushioning:

   • The die cushioning feature of our press ensures even pressure distribution during the forming process. This reduces material stress, resulting in higher-quality deep-drawn components with fewer defects.
   • The cushioning system also allows for better control over the metal flow during the drawing process, which is crucial for producing complex shapes with precise dimensions.

2. Versatile Applications:

   • Our press is versatile enough to handle various applications, including the production of automotive parts, household appliances, and components for the aerospace and electrical industries. Whether you're forming complex shapes or simple metal parts, this press can handle it all with precision.
   • The machine is particularly well-suited for deep drawing operations where maintaining the integrity of the material is critical, such as in the manufacturing of fuel tanks, kitchen sinks, and structural components in the aerospace industry.

3. Customizable Capacity:

   • We understand that every manufacturing process has unique requirements. That's why our Hydraulic Deep Drawing Press is available in a range of capacities, from 10 to 250+ tons, allowing you to choose the right tonnage for your specific needs.
   • Customization options also extend to the size of the bed and the speed of operation, ensuring that the press can be adapted to various production line requirements.

4. User-Friendly Operation:

   • Ease of use is a priority in our design. The press features a motorized operation with push-button controls, making it easy to operate while ensuring the safety of your team.
   • Additionally, the press is equipped with advanced safety features such as overload protection and emergency stop functions, which help prevent accidents and ensure smooth operation.

5. Durable and Robust Construction:

   • Built with high-quality materials, our press is designed for long-lasting performance. It is capable of withstanding the rigours of continuous use in demanding industrial environments, ensuring a solid return on your investment.
   • The machine’s frame is designed to absorb vibrations and shocks during operation, which enhances stability and prolongs the life of the machine.

6. Advanced Graph Plotting Technology with PLC Control System:

   • The press is equipped with a state-of-the-art PLC (Programmable Logic Controller) system that allows for precise control of the pressing parameters. The PLC system ensures that every cycle is consistent, reducing variability in the production process.
   • Advanced graph plotting technology is integrated into the system, providing real-time data on the press's performance. This feature allows operators to monitor critical parameters such as force, speed, and position, enabling them to make adjustments on the fly to optimize the forming process.

Technical Specifications

• Capacity: 10-250 tons (and beyond, as per customization)
• Type: Hydraulic-operated, Die Cushioning
• Operation: Motorized with push-button control
• Customization: Fully customizable to suit your specific production needs
• PLC Control System: Ensures precision and consistency in operations with real-time monitoring
• Graph Plotting Technology: For detailed analysis of press performance and optimization of production processes

See Our Press in Action

To give you a better idea of how our Hydraulic Deep Drawing Pressworks, we invite you to watch our demonstration videos:

• Demo Video 1
• Demo Video 2

You can also explore more detailed specifications and information in our Product Catalog.

Get in Touch

If you’re interested in learning more about how our Hydraulic Deep Drawing Press can enhance your production capabilities, please don’t hesitate to contact us. Our team is ready to provide you with the information you need to make an informed decision.

• Phone: +91-9634240075
• Email: vanshindustries.com@gmail.com, info@vanshindustries.co.in
• Website: www.vanshindustries.net

At Vansh Industries, we are dedicated to providing innovative and high-performance machinery that helps you achieve excellence in your manufacturing processes. Let us help you take your production to the next level with our state-of-the-art Hydraulic Deep Drawing Press.

Introduction:

The Fatigue Testing Machine from Vansh Industries is engineered to evaluate cylinders' durability and safety rigorously. This state-of-the-art equipment integrates advanced functions and the latest graph plotting technologies with a sophisticated PLC control system, making it an indispensable tool for ensuring the highest quality standards in cylinder manufacturing.(LPG, Gyser Tank, pneumatic Tank)

Key Specifications:

1. Pressure Range:

   - Simulates a broad spectrum of pressure levels, replicating real-world usage conditions.

   - Maximum pressure capacity: [Specify Pressure Capacity, e.g., up to 100 bars].

2. Cycle Frequency:

   - Adjustable cycle frequency to simulate various operational environments.

   - Cycle speed: [e.g., 5 to 50 cycles per minute], configurable to match specific testing protocols.

3. Cylinder Capacity:

   - Suitable for a variety of cylinder sizes, typically accommodating [e.g., 5 kg to 50 kg LPG cylinders].

4. Material and Build:

   - High-strength steel construction with corrosion-resistant coatings.

   - Reinforced testing chamber for safe containment during high-pressure scenarios.

Advanced Functions:

1. Real-Time Monitoring and Control:

   - The integrated PLC control system allows for precise real-time monitoring and adjustment of testing parameters, ensuring that each test is conducted under optimal conditions.

   - Operators can easily modify pressure levels, cycle speeds, and test durations directly from the user interface.

2. Automated Test Sequences:

   - Pre-programmed test sequences enable fully automated operations, reducing the need for constant manual oversight.

   - Custom test sequences can be created and stored, allowing for flexibility in testing different cylinder types or meeting specific regulatory requirements.

3. Error Detection and Alerts:

   - The system automatically detects any anomalies during testing, such as cylinder deformation or leakage, and triggers immediate alerts.

   - Automatic shutdown is initiated to protect both the equipment and the operator in case of a detected fault.

4. Data Logging and Analysis:

   - The machine continuously logs data during each test cycle, capturing critical metrics such as pressure variations, cycle counts, and temperature changes.

   - All data is stored securely and can be retrieved for in-depth analysis and reporting.

New Graph Plotting Technologies:

1. Real-Time Graphical Display:

   - The machine features an advanced graphical user interface (GUI) that plots real-time pressure vs. time graphs, allowing operators to visualize the test process as it happens.

   - Graphs dynamically update with each cycle, providing immediate insights into cylinder performance and potential failure points.

2. Multi-Parameter Visualization:

   - Simultaneously plot multiple parameters on a single graph, such as pressure, temperature, and cycle count. This multi-layered approach helps in identifying correlations and understanding the overall behavior of the cylinder under test.

3. Data Export and Reporting:

   - The PLC system allows for easy export of test data in various formats (CSV, PDF) for further analysis or reporting.

   - Customizable reporting tools enable the creation of detailed test reports, complete with graphical representations, which can be shared with stakeholders or used for compliance documentation.

4. Historical Data Comparison:

   - The system can overlay new test results on historical data, enabling direct comparison between different test batches or cylinder models. This feature is particularly useful for tracking quality improvements over time or identifying long-term trends.

Safety Features:

- Emergency Stop and Pressure Relief: Integrated safety mechanisms automatically engage in case of overpressure or cylinder failure, protecting both the equipment and the operator.

- Automated Shutdown: The machine shuts down instantly upon detecting critical failures, ensuring a secure testing environment.

Applications:

- LPG Cylinder Manufacturing Plants: Ensure that all cylinders meet rigorous durability standards before market release.

- Quality Assurance Labs: Conduct routine checks to maintain compliance with safety standards.

- R&D Departments: Test new cylinder designs and materials under simulated real-world conditions.

Advantages:

- Enhanced Accuracy: The combination of real-time monitoring, automated controls, and advanced graph plotting technologies ensures precise and reliable testing results.

- Improved Efficiency: Automated test sequences and data logging reduce manual intervention, speeding up the testing process while maintaining high accuracy.

- Comprehensive Analysis: The ability to visualize and compare multiple parameters in real-time aids in thorough analysis and decision-making.

Conclusion:

The Fatigue Testing Machine from Vansh Industries, equipped with the latest PLC control systems and graph plotting technologies, represents a significant advancement in LPG cylinder testing. It provides manufacturers with the tools needed to ensure that their products are safe, reliable, and compliant with industry standards.

Contact Information:

For more details or to request a quote, please reach out to Vansh Industries.

Website-www.vanshindustries.net

Phone No- +91 9634240075

Youtube - https://www.youtube.com/@vanshindustries
